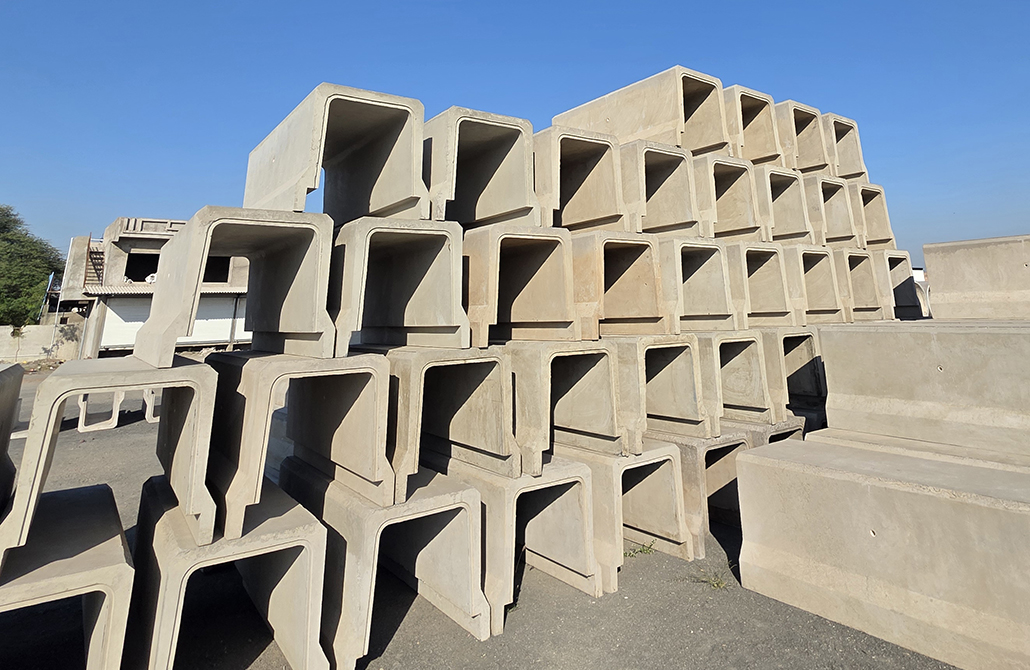

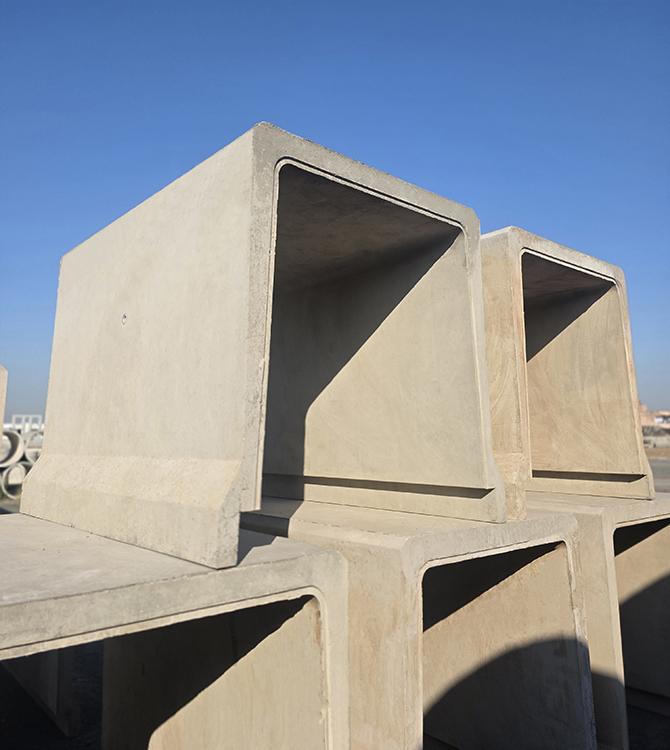

U Shape Drain

Our U-Shape Drain is manufactured using high strength M50 grade concrete, ensuring exceptional durability, load-bearing capacity, and long service life. Designed for efficient surface water drainage, it offers excellent resistance to abrasion, weathering, and chemical exposure. Ideal for industrial areas, highways, residential layouts, and infrastructure projects, the U-shape design allows smooth water flow, easy installation, and minimal maintenance while maintaining structural stability under heavy loads.

Features of U Shape Darin

  • High strength & load-bearing capacity.
  • Efficient stormwater flow
  • Durable and long-lasting
  • Easy maintenance and cleaning
U Shape Drain
U Shape Drain
U Shape Drain

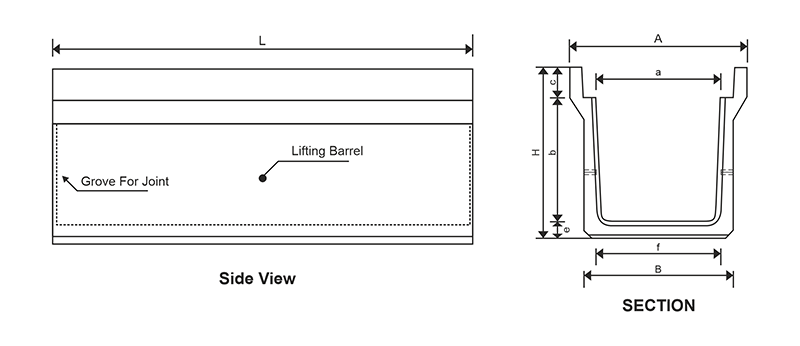

Size (mm) Dimensions of U Shape Drain (mm)
a x b L A B H a b c e f
300 x 300 2000 540 420 480 300 300 110 70 280
450 x 450 2000 700 590 660 450 450 130 780 430
600 x 600 2000 860 730 835 600 600 145 90 550
750 x 750 2000 1050 890 1000 750 750 150 100 690
900 x 900 2000 1200 1070 1170 900 900 150 120 830
1200 x 1200 2000 1500 1340 1470 1200 1200 150 120 1100

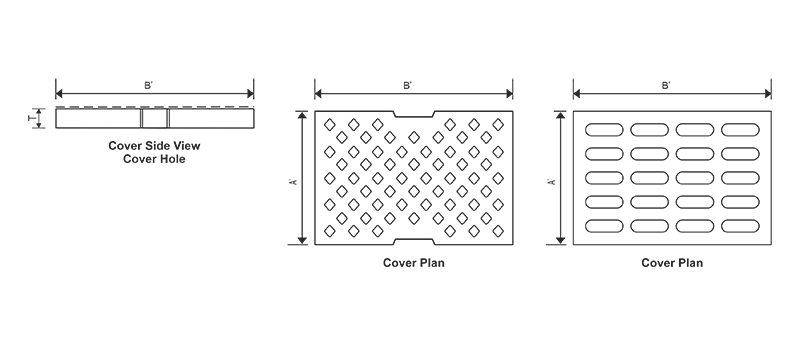

Size (mm) Dimensions of Cover (mm)
a x b A' B' H'
300 x 300 500 415 110
450 x 450 500 575 130
600 x 600 500 730 145
750 x 750 500 900 150
900 x 900 500 1050 150
1200 x 1200 500 1350 150
